> Carnivore2 by MAXIOL, available to order and purchase
SuperMax
сообщение 10.8.2020, 1:55
Сообщение #1


Администратор
*****

Группа: Root Admin
Сообщений: 6 131
Регистрация: 7.1.2006
Из: Красноярск
Пользователь №: 1



Carnivore2 is the multi-functional cartridge for the MSX platform that was created in 2017. The project is still supported - new firmware for FPGA Altera is being released, as well as software - the tools for working with the cartridge, the program for creating the startup menu (boot block).

Authors: RBSC (Russian Bear Service Crew)

The cartridge is compatible with all MSX computers from MSX1 to TurboR. In order for the cartridge to work properly on the Arabic and Korean MSX systems, the special version of the boot block and directory editing utilities are required.

FULL TECH SPECS
  • FPGA: Altera Cyclone II EP2C5Q208C8
  • 8MB FlashROM
  • Mappers support:
  1. Konami 4
  2. Konami 5
  3. ASCII8
  4. ASCII16
  5. Planar mode (64 Kb in slot)
  • 2048KB RAM on-board. 1024KB RAM Mapper, 720KB pseudo-MegaRAM.
  • Sound:
  1. PPI and PSG emulation
  2. Konami SCC and SCC+ emulation
  3. OPLL emulation (YM2413, MSX-Music)
  • External storage: CF card (CompactFlash)
  • High quality ceramic capacitors
  • Stereo audio output jack (3.5mm)
  • NEXTOR and FM-BASIC ROMs on-board

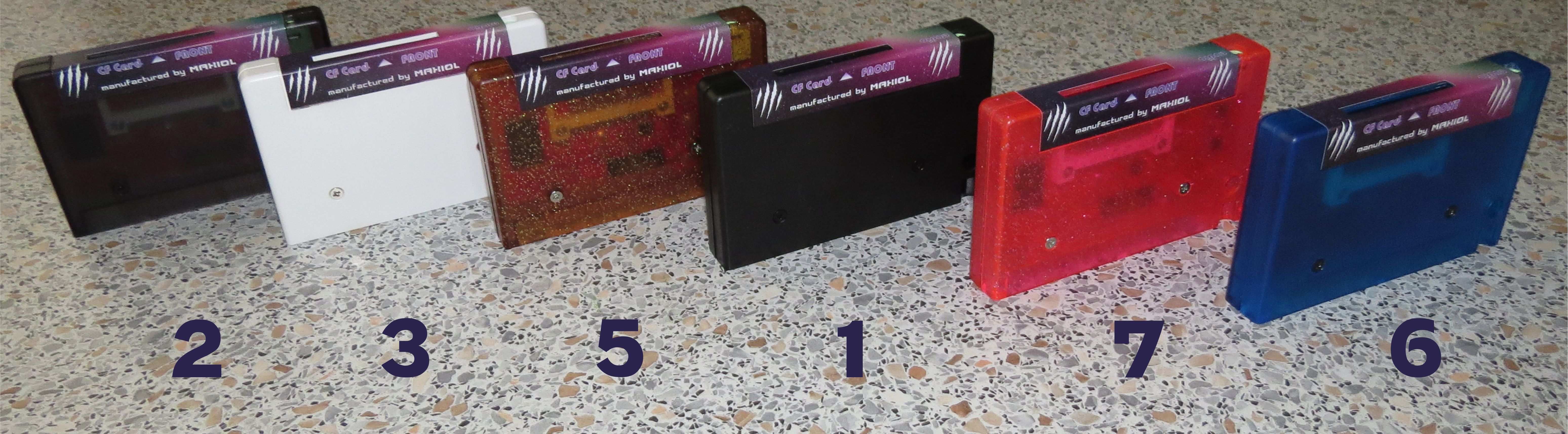

  • The color of the cartridge can be selected from those currently in stock, the full range of colors - 6.
  • Good works on MSX1, MSX2, MSX2+ and TurboR machines
  • Propietary software utility to manage all functions, load ROMs into flash memory, etc.
  • Natively supported by SofaRun
  • Printed circuit board цшер gold plated contacts (ENIG)
The color of the cartridge can be selected from those currently in stock, the full range of colors - 6.

Прикрепленное изображение
Прикрепленное изображение

detailed photos


Reminder for everyone - important links
Carnivore2 User Guide English version
Инструкция по эксплуатации Carnivore2 Русская версия
Carnivore2 CF card and adapter compatibility
RBSC (Russian Bear Service Crew)


--------------------
Живы будем - Не помрем !
Пользователь в офлайнеКарточка пользователяОтправить личное сообщение
Вернуться в начало страницы
+Ответить с цитированием данного сообщения
SuperMax
сообщение 10.8.2020, 1:58
Сообщение #2


Администратор
*****

Группа: Root Admin
Сообщений: 6 131
Регистрация: 7.1.2006
Из: Красноярск
Пользователь №: 1



PRODUCT INFO

Built around a Cyclone II FPGA from Altera, the Carnivore2 its a powerful piece of hardware packed with many features: FlashROM, Compact Flash storage interface (w/Nextor ROM on-board), 1MB RAM mapper, 720KB MegaRAM, SCC, SCC+, FMPAC (w/ MSX Music ROM on-board and backup RAM support) and PSG.

You can enable or disable one and each of these functions independently and combine them at will with the configuration software.

Cartridge configurations can be stored in the flash memory and then loaded from the boot menu. From this menu you can also choose any of the ROMs written into the cartridge's flash chip.

The cartridge comes with Nextor DOS ROM. This is available when the CF (IDE) function is enabled. Nextor is 100% compatible with MSXDOS2 and adds many powerfull features as native FAT16 support, virtual floppy
disk through .dsk mounting, etc...

At the moment, this cartridge is the most convenient and compact device that provides all the necessary functionality.



--------------------
Живы будем - Не помрем !
Пользователь в офлайнеКарточка пользователяОтправить личное сообщение
Вернуться в начало страницы
+Ответить с цитированием данного сообщения
SuperMax
сообщение 10.8.2020, 2:12
Сообщение #3


Администратор
*****

Группа: Root Admin
Сообщений: 6 131
Регистрация: 7.1.2006
Из: Красноярск
Пользователь №: 1



RETURN AND REFUND POLICY

In order to receive a replacement or refund, the defective cartridge must be returned first. After the cartridge has been checked and we do not find any signs of violation of the warranty, we will proceed to replace the device or refund the payment. In case of loss of warranty, all operations, including cartridge repair, are paid.

The warranty is lost:
1.after opening the cartridge
2.with mechanical damage
3. other damage as a result of careless / improper use or modification, including software.
After loss of warranty, cartridges are not eligible for replacement or refund of any kind.

Please note: if you accidentally delete the BIOS of the cartridge, we will not provide technical support during the flashing process, since after opening the cartridge, the warranty will void. If you would like your cartridge to remain under warranty, please send it to us for reflashing. There is a charge for the firmware update procedure. Shipping costs are not refundable.

The cartridge is assembled from high-quality components and, if properly operated, will work for many years and delight you.


--------------------
Живы будем - Не помрем !
Пользователь в офлайнеКарточка пользователяОтправить личное сообщение
Вернуться в начало страницы
+Ответить с цитированием данного сообщения
SuperMax
сообщение 10.8.2020, 12:14
Сообщение #4


Администратор
*****

Группа: Root Admin
Сообщений: 6 131
Регистрация: 7.1.2006
Из: Красноярск
Пользователь №: 1



Packing and shipping

packaging technology:
first it is packed in a branded bag
IPB Image

then some bubble wrap + strong box
IPB Image
to understand the size of the package, I put another cartridge on top

IPB Image
here is another cartridge next to it, too, to understand the thickness of the package

Carnivore2 cartridge weighing only 80 grams
with packaging, it weighs 170 grams - those 90 grams of packaging material

then it goes into the mail package
IPB Image

this technology of sending will ensure the safety of the cartridge when sent to any accessible point of the world


--------------------
Живы будем - Не помрем !
Пользователь в офлайнеКарточка пользователяОтправить личное сообщение
Вернуться в начало страницы
+Ответить с цитированием данного сообщения
SuperMax
сообщение 11.8.2020, 23:23
Сообщение #5


Администратор
*****

Группа: Root Admin
Сообщений: 6 131
Регистрация: 7.1.2006
Из: Красноярск
Пользователь №: 1



Orders and Shipping

The cost of a Carnivore2 by MAXIOL cartridge is € 100 if paid as a friend.
When paid as a product 110 euros.
The cost includes delivery anywhere in the world
payment is made in rubles at the current exchange rate

To order, write a letter to radioshop@maxiol.com
The letter must indicate
- cartridge body number - the first message contains numbering.
- number of cartridges Carnivore2 by MAXIOL
- full mailing address for shipment

will come in response
- estimated shipping date
- the exact cost in rubles at the current exchange rate
- Paypal contact for payment

in rare cases, we can accept payment in dollars or euros. if we have such an opportunity, we will write you about it in a letter.

reply is sent within 1 day, if you have not received a reply - check your spam folder.

If you have any questions, you can ask them by writing us a letter to radioshop@maxiol.com





--------------------
