We used the scheme © Pasha Zakharov 2: 5001/3 [thank him for the original decision] with minor changes.
Production and use of controllers Sunrise IDE BIOS agreed with the Jon De Schrijder & Sunrise.

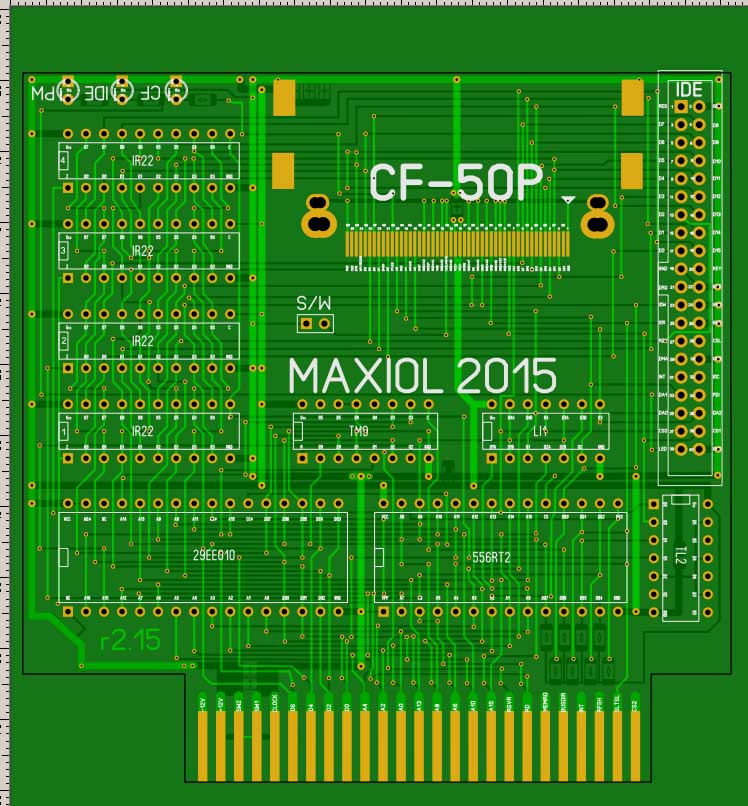

Preview PCB
Нажмите для просмотра прикрепленного файла

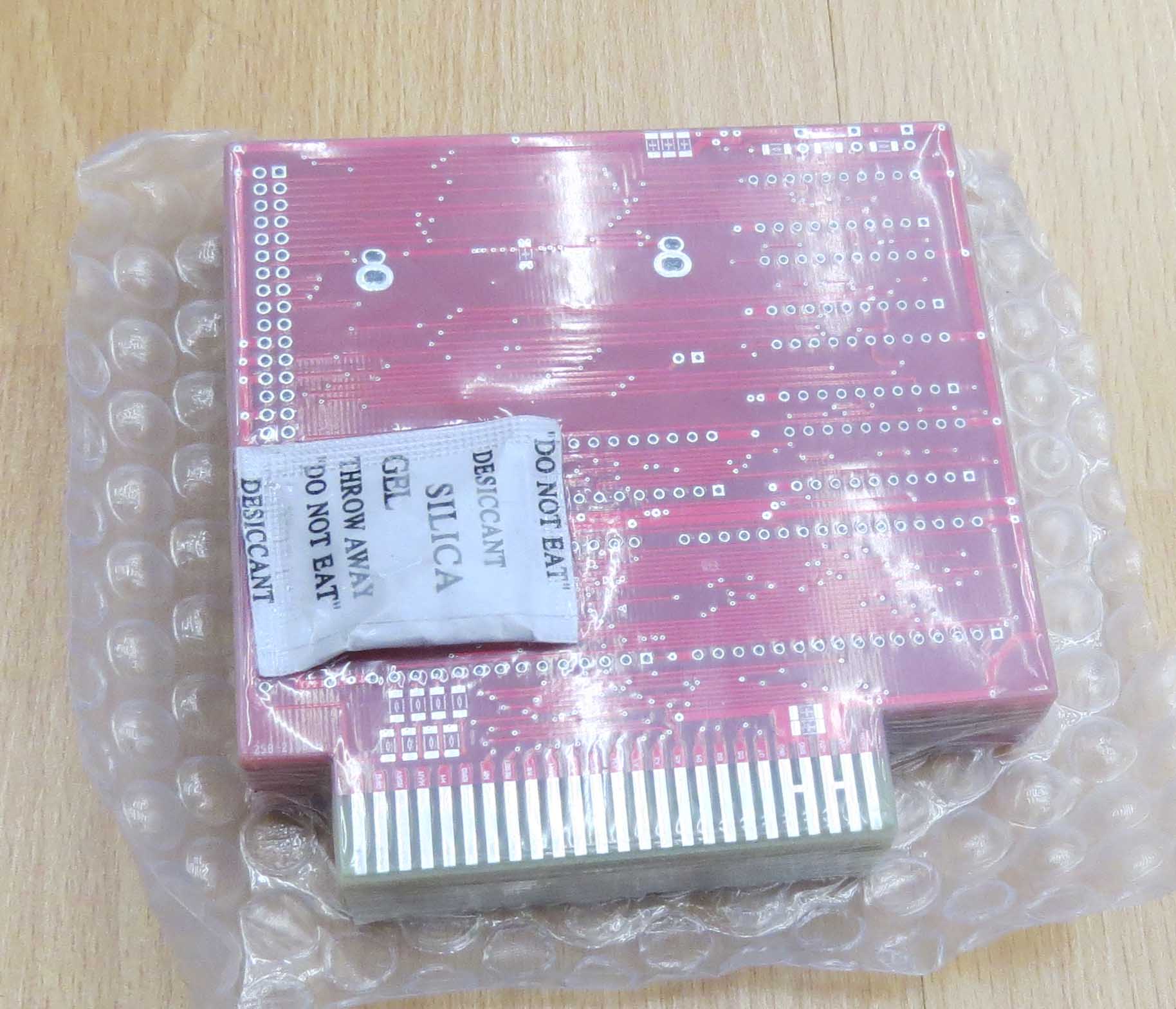

The finished printed circuit board
Нажмите для просмотра прикрепленного файла
Assembled controller
Нажмите для просмотра прикрепленного файла
Assembled controller with CF 2GB
Нажмите для просмотра прикрепленного файла
Installed LEDs indicate:
Green - power supply controller
Yellow - active devices on the IDE port.
Blue - Activity CF-Card
firmware
Nextor 2.0.4
Нажмите для просмотра прикрепленного файла
Sunrise 2.50
Нажмите для просмотра прикрепленного файла
especially the implementation of the controller:
not support for flashing the BIOS by MSX software.
It is possible to flash the ROM, or install the alternative firmware to the socket.
The controller is tested for the following MSX:
Yamaha MSX2 YIS503III R
Yamaha MSX2 YIS805/128 R
Panasonic FS-A1F (MSX 2)
Panasonic FS-A1FX (MSX 2+)
Panasonic FS-A1ST (Turbo-R)
Panasonic FS-A1GT
Philips VG 8235
Philips NMS8245
